(MISC)
Miscellaneous


  figure6947
Gzipped Postscript Version

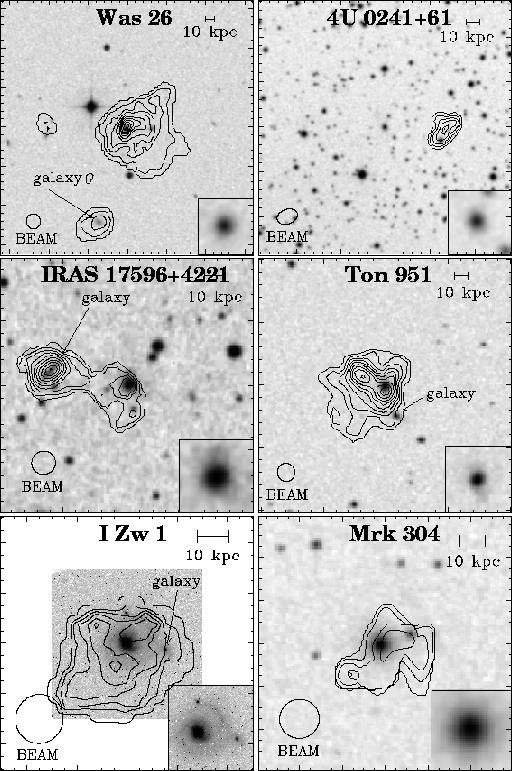

Figure 168: in low-redshift QSOs.
HI: VLA C-array. FWHM resolution indicated by circle drawn in lower left panel of each plot.
Optical: DSS, except for I Zw 1 taken from the Hubble Space Telescope archive.
Notes: The QSO and its host galaxy (where visible) is shown magnified in the lower right inset of each panel.
Reference: Lim, J., & Ho, P.T.P. 1999, ApJ, 510, L7, and Lim et al., these proceedings, p. 111.

  figure6966
Gzipped Postscript Version

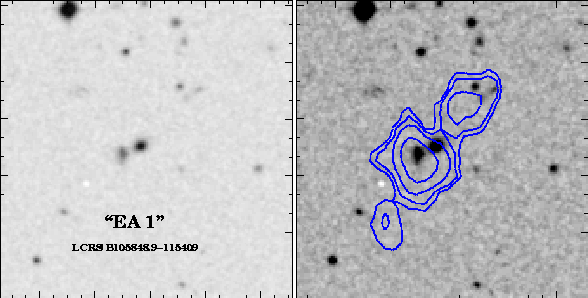

Figure 169: The E+A Galaxy EA1.
HI: VLA C-array, tex2html_wrap_inline21668 resolution, contours=tex2html_wrap_inline20178 cmtex2html_wrap_inline20048.
Optical: DSS, FOV=tex2html_wrap_inline21674.
Notes: Selected for having a post-starburst or ``E+A'' (a.k.a. ``K+A'') spectrum.
Reference: Chang, T-C., van Gorkom, J. H., Zabludoff, A. I., Zaritsky, D., & Mihos, J. C. 2001, AJ, 121, 1965 and Chang et al., these proceedings, p. 634.

  figure6979
Gzipped Postscript Version

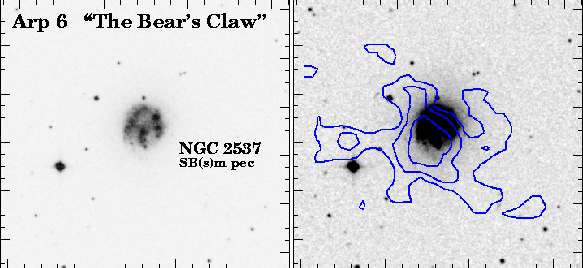

Figure 170: The Arp 6 System.
HI: WSRT, 30'' resolution, contours=tex2html_wrap_inline20884 cmtex2html_wrap_inline20048.
Optical: DSS, FOV=tex2html_wrap_inline21682.
Reference: Swaters, R. A., 1999, PhD thesis, Rijksuniversiteit Groningen, and Swaters, & R.A., van Albada, T.S., van der Hulst, J.M., Sancisi, R., 2001, A&AS, submitted.

  figure6995
Gzipped Postscript Version

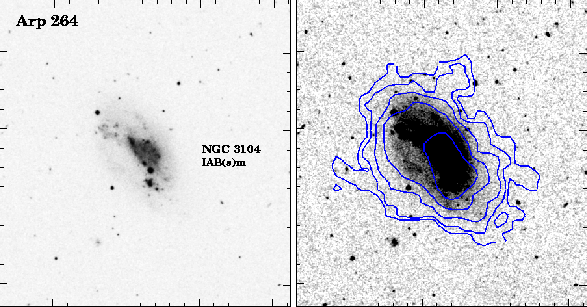

Figure 171: The Arp 264 System.
HI: WSRT, 30'' resolution, contours=tex2html_wrap_inline20100 cmtex2html_wrap_inline20048.
Optical: DSS, FOV=tex2html_wrap_inline20676.
Reference: Swaters, R. A., 1999, PhD thesis, Rijksuniversiteit Groningen, and Swaters, & R.A., van Albada, T.S., van der Hulst, J.M., Sancisi, R., 2001, A&AS, submitted.

  figure7009
Gzipped Postscript Version
Figure 172: The UGC 8201 System.
HI: WSRT, 30'' resolution, contours=tex2html_wrap_inline21694 cmtex2html_wrap_inline20048.
Optical: DSS, FOV=tex2html_wrap_inline20676.
Reference: Swaters, R. A., 1999, PhD thesis, Rijksuniversiteit Groningen, and Swaters, R.A., van Albada, T.S., van der Hulst, J.M., & Sancisi, R., 2001, A&AS, submitted.

  figure7022
Gzipped Postscript Version

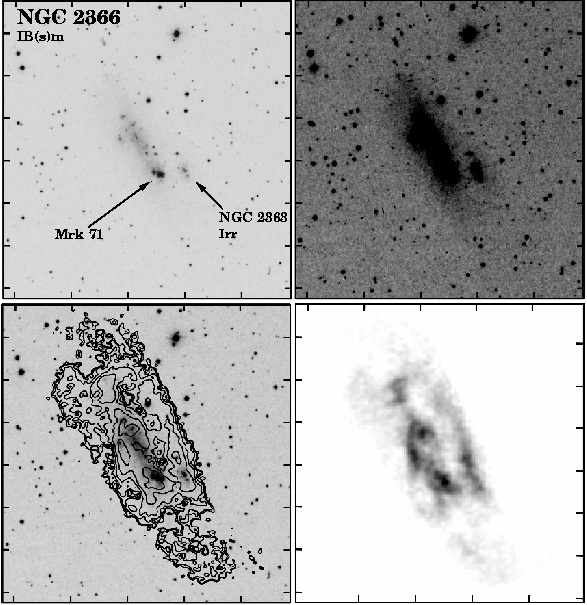

Figure 173: The Blue Compact Dwarf system NGC2363/6.
HI: VLA C-array, tex2html_wrap_inline20082 resolution, contours=tex2html_wrap_inline20100 cmtex2html_wrap_inline20048.
Optical: DSS, FOV=tex2html_wrap_inline21706.
Reference: Thuan, Hibbard & Levrier, these proceedings, p. 864. See also Hunter, D.A., Elmegreen, B.G., & van Woerden, H. 2001, ApJ, 556, 773.

  figure7038
Gzipped Postscript Version

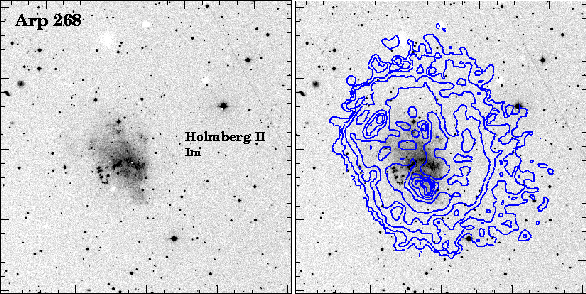

Figure 174: The Holmberg II System.
HI: WSRT, 30'' resolution, contours=tex2html_wrap_inline20100 cmtex2html_wrap_inline20048.
Optical: DSS, FOV=tex2html_wrap_inline21714.
Reference: Swaters, R. A., 1999, PhD thesis, Rijksuniversiteit Groningen, and Swaters, & R.A., van Albada, T.S., van der Hulst, J.M., Sancisi, R., 2001, A&AS, submitted.

  figure7053
Gzipped Postscript Version

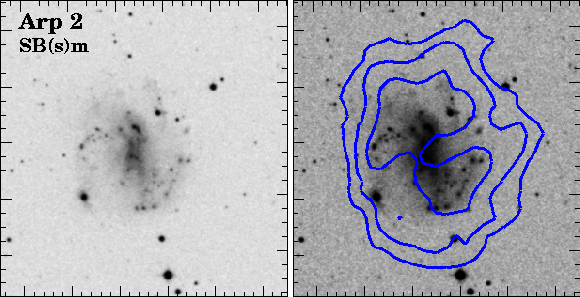

Figure 175: The Arp 2 System.
HI: WSRT, 30'' resolution, contours=tex2html_wrap_inline20152 cmtex2html_wrap_inline20048.
Optical: DSS, FOV=tex2html_wrap_inline21722.
Reference: Swaters, R. A., 1999, PhD thesis, Rijksuniversiteit Groningen, and Swaters, & R.A., van Albada, T.S., van der Hulst, J.M., Sancisi, R., 2001, A&AS, submitted.

  figure7066
Gzipped Postscript Version

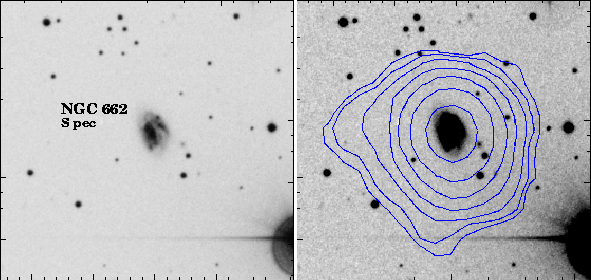

Figure 176: The NGC 0662 System.
HI: VLA D-array, tex2html_wrap_inline21724 resolution, contours=tex2html_wrap_inline20334 cmtex2html_wrap_inline20048.
Optical: DSS, FOV=tex2html_wrap_inline21292.
Reference: Schiminovich et al., these proceedings, p. 863.

  figure7080
Gzipped Postscript Version

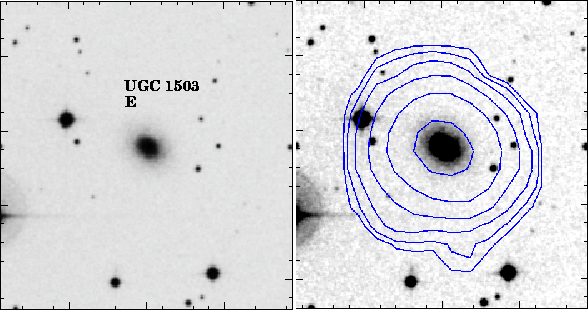

Figure 177: The low-luminosity elliptical UGC 1503.
HI: VLA D-array, tex2html_wrap_inline21732 resolution, contours=tex2html_wrap_inline20334 cmtex2html_wrap_inline20048.
Optical: DSS, FOV=tex2html_wrap_inline20114.
Notes: The distribution in this system is fairly typical of low luminosity ellipticals as a class; see Oosterloo et al., these proceedings, p. 251.
Reference: Schiminovich et al., these proceedings, p. 863.

  figure7094
Gzipped Postscript Version

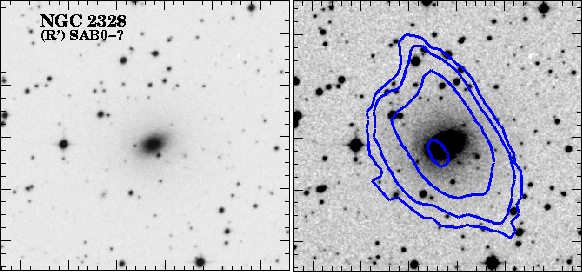

Figure 178: The IR Bright Early Type NGC2328.
HI: VLA D-array, tex2html_wrap_inline21740 resolution, contours=tex2html_wrap_inline20046 cmtex2html_wrap_inline20048.
Optical: DSS, FOV=tex2html_wrap_inline21682.
Reference: Rupen, Hibbard & Bunker, these proceedings, p. 863.

  figure7106
Gzipped Postscript Version

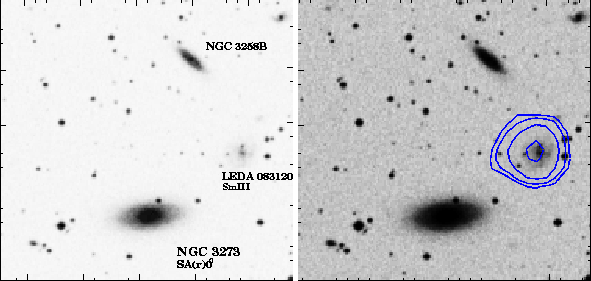

Figure 179: The IR Bright Early Type NGC3273.
HI: VLA D-array, tex2html_wrap_inline21748 resolution, contours=tex2html_wrap_inline20046 cmtex2html_wrap_inline20048.
Optical: DSS, FOV=tex2html_wrap_inline20906.
Reference: Rupen, Hibbard & Bunker, these proceedings, p. 863.

  figure7120
Gzipped Postscript Version

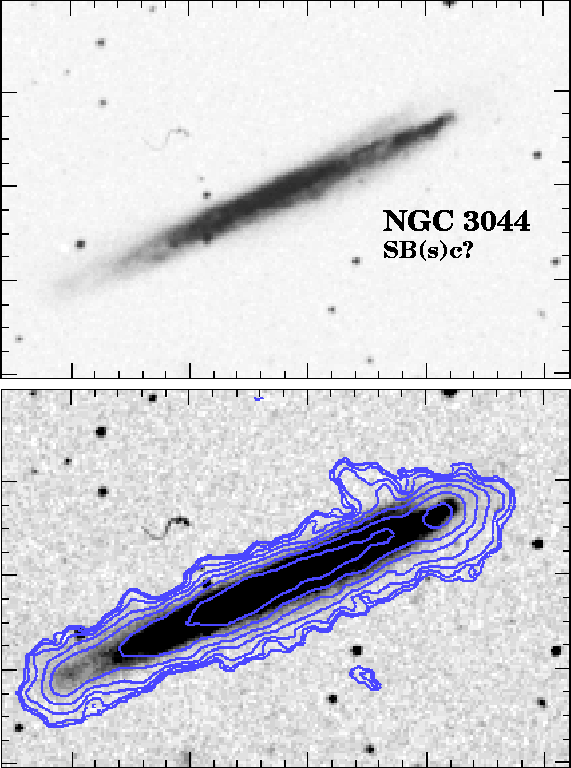

Figure 180: The Edge-on system NGC 3044.
HI: VLA C-array, 14'' resolution, contours=tex2html_wrap_inline20100 cmtex2html_wrap_inline20048.
Optical: DSS, FOV=tex2html_wrap_inline21762.
Reference: Lee, S.-W. & Irwin, J.A. 1997, ApJ, 490, 247.

  figure7132
Gzipped Postscript Version

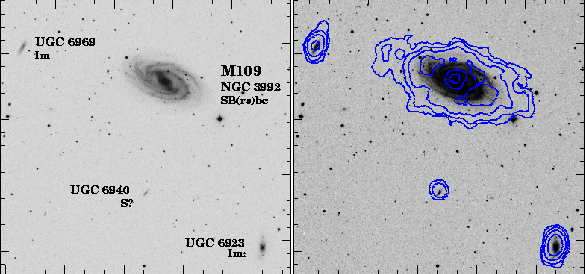

Figure 181: The M 109 System.
HI: WSRT, 60'' resolution, contours=tex2html_wrap_inline20100 cmtex2html_wrap_inline20048.
Optical: DSS, FOV=tex2html_wrap_inline21770.
Notes: Member of the Ursa Major Cluster. See also Fig. 164.
Reference: Verheijen, M. A. W., & Sancisi, R. 2001, A&A, 370, 765.
