Powerful Supercomputer Makes ALMA a Telescope

One of the most powerful calculating machines known to the civilian world has been installed and tested in a remote, high-altitude site in the Andes Mountains of northern Chile, marking one of the major remaining milestones toward completion of the most elaborate ground-based telescope in history, the Atacama Large Millimeter/submillimeter Array (ALMA).

ALMA Correlator

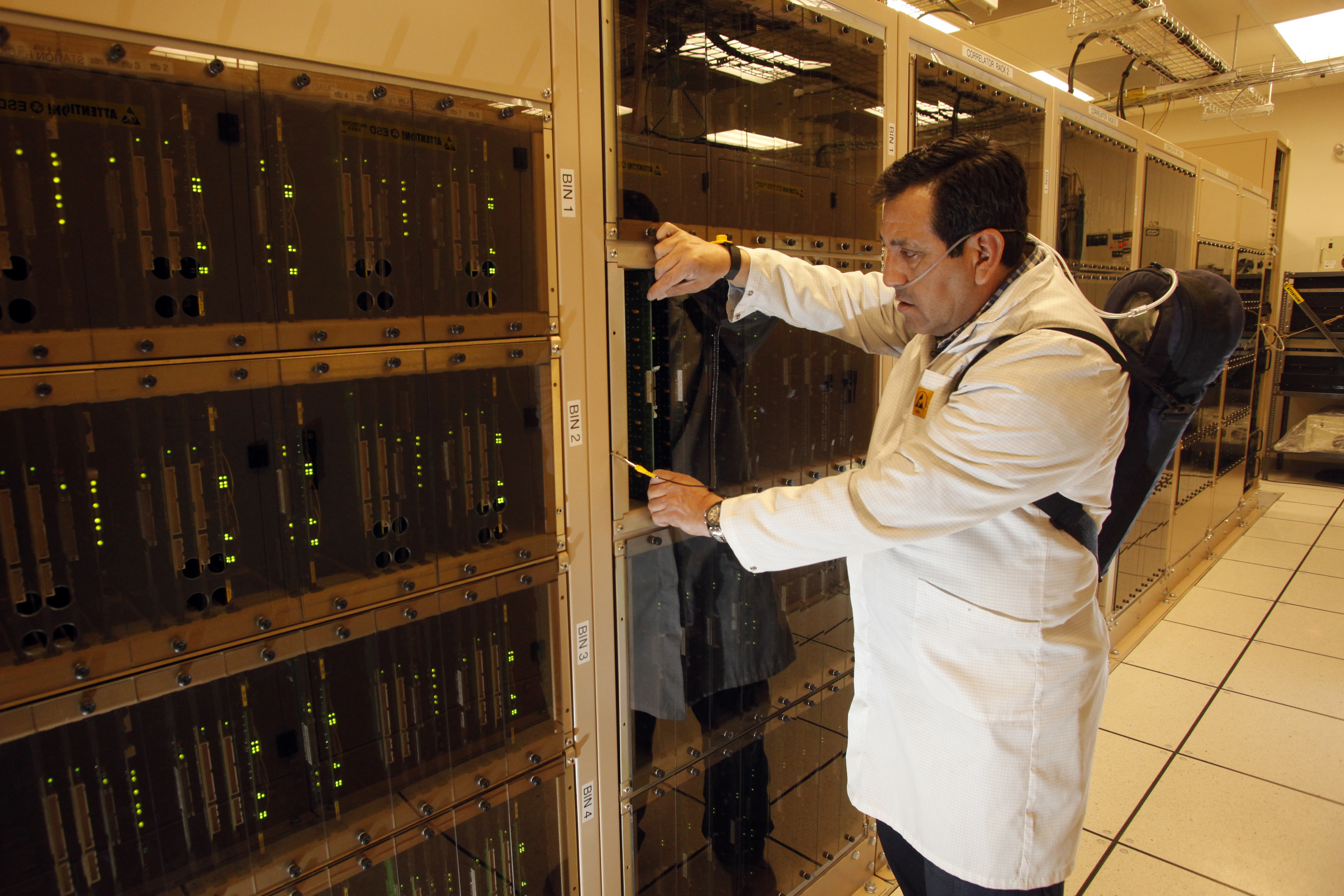

Technician Juan Carlos Gatica checks electronics on the ALMA correlator.
For this task, he's using supplemental oxygen at the high-altitude site.
CREDIT: Carlos Padilla, NRAO/AUI/NSF

The ALMA correlator's 134 million processors will continually combine and compare faint celestial "signals" received by as many as 50 dish-shaped antennas in the main ALMA array, enabling the antennas to work together as a single, enormous astronomical telescope. The correlator can additionally accommodate up to 14 of the 16 antennas in the Atacama Compact Array (ACA), a separate part of ALMA provided by the National Astronomical Observatory of Japan (NAOJ), for a total of 64 antennas. In radio telescope arrays, sensitivity and image quality increase with the number of antennas.

Funded by the U.S. National Science Foundation (NSF), and designed, constructed, and installed primarily by the National Radio Astronomy Observatory (NRAO), the ALMA correlator is a critical component in a radio telescope system that astronomers are already using to make new discoveries about how planets, stars, and galaxies form. Unlike optical telescopes, which observe visible light emitted by stars, ALMA explores a region of the spectrum of invisible light, the millimeter and sub-millimeter wavelength realm.

When observing, ALMA's antennas point at the same celestial object in the sky, gathering faint radio waves. Before astronomers can make detailed images or do other analyses, the information collected by dishes separated by as much as ten miles must be extensively computer processed.

The ALMA correlator performs the first critical steps in this data processing. To make the entire system work as a single telescope, the information collected by each antenna must be combined with that from every other antenna. At the correlator's maximum capacity of 64 antennas, there are 2,016 antenna pair combinations, and as many as 17 quadrillion calculations every second.

"The completion and installation of the correlator is a huge milestone toward the fulfillment of North America's share of the international ALMA construction project," said Mark McKinnon, North American ALMA Project Director at NRAO. "The technical challenges were enormous, and our team pulled it off," he added.

One of the challenges facing the correlator design team, led until his retirement by correlator expert Ray Escoffier, was cost. "As we confronted this project, we realized that it would have taken, at the time, a billion dollars' worth of off-the-shelf personal computers to perform the needed calculations. We built our own custom machine for about 11 million dollars," said John Webber, former head of the NRAO Central Development Laboratory in Charlottesville, Virginia.

Another challenge was the extreme location. The correlator is housed in the ALMA Array Operations Site (AOS) Technical Building, the highest-altitude high-tech building in the world. At 16,500 feet, the air is thin, so twice the normal airflow is necessary to cool the machine, which draws some 140 kilowatts of power. Computer disk drives will not work reliably in thin air, so the correlator and its associated computers must be diskless. Seismic activity is common, so the correlator had to be designed to withstand the vibrations associated with earthquakes.

The thin air at the ALMA site also affects human performance. While the AOS Technical Building is expected to be unmanned during routine ALMA operations, it took about 20 weeks of human effort there to unpack and install the correlator. "There are thousands upon thousands of cable connections that we had to make, and every one of our cables is the same color blue, so I'm just glad we devised a good labeling system while at sea-level," said NRAO's Rich Lacasse, leader of the ALMA Correlator Team.

ALMA's European partner, led by the European Southern Observatory (ESO), provided an important component of the correlator, 512 "next-generation" circuit boards, built by the University of Bordeaux under the leadership of Alain Baudry, that increase the system's ability to distinguish fine shades of color, or wavelength. This contribution improved the spectroscopic performance of the original design by a factor of 32 at no net increase in cost.

The ALMA correlator is one of two such systems in the ALMA complex. A second system, built by the Fujitsu company and delivered by NAOJ, provides independent correlation of the 16 antennas in the ACA, except for times when select ACA antennas are combined with the 50 more widely dispersed main array antennas. Completion of ALMA construction is planned for late 2013.

ALMA, an international astronomy facility, is a partnership of Europe, North America and East Asia in cooperation with the Republic of Chile. ALMA construction and operations are led on behalf of Europe by ESO, on behalf of North America by the National Radio Astronomy Observatory (NRAO), and on behalf of East Asia by the National Astronomical Observatory of Japan (NAOJ). The Joint ALMA Observatory (JAO) provides the unified leadership and management of the construction, commissioning and operation of ALMA.

The National Radio Astronomy Observatory is a facility of the National Science Foundation, operated under cooperative agreement by Associated Universities, Inc.
