Radio Jets U-shaped 3C83.1 (NGC 1265)

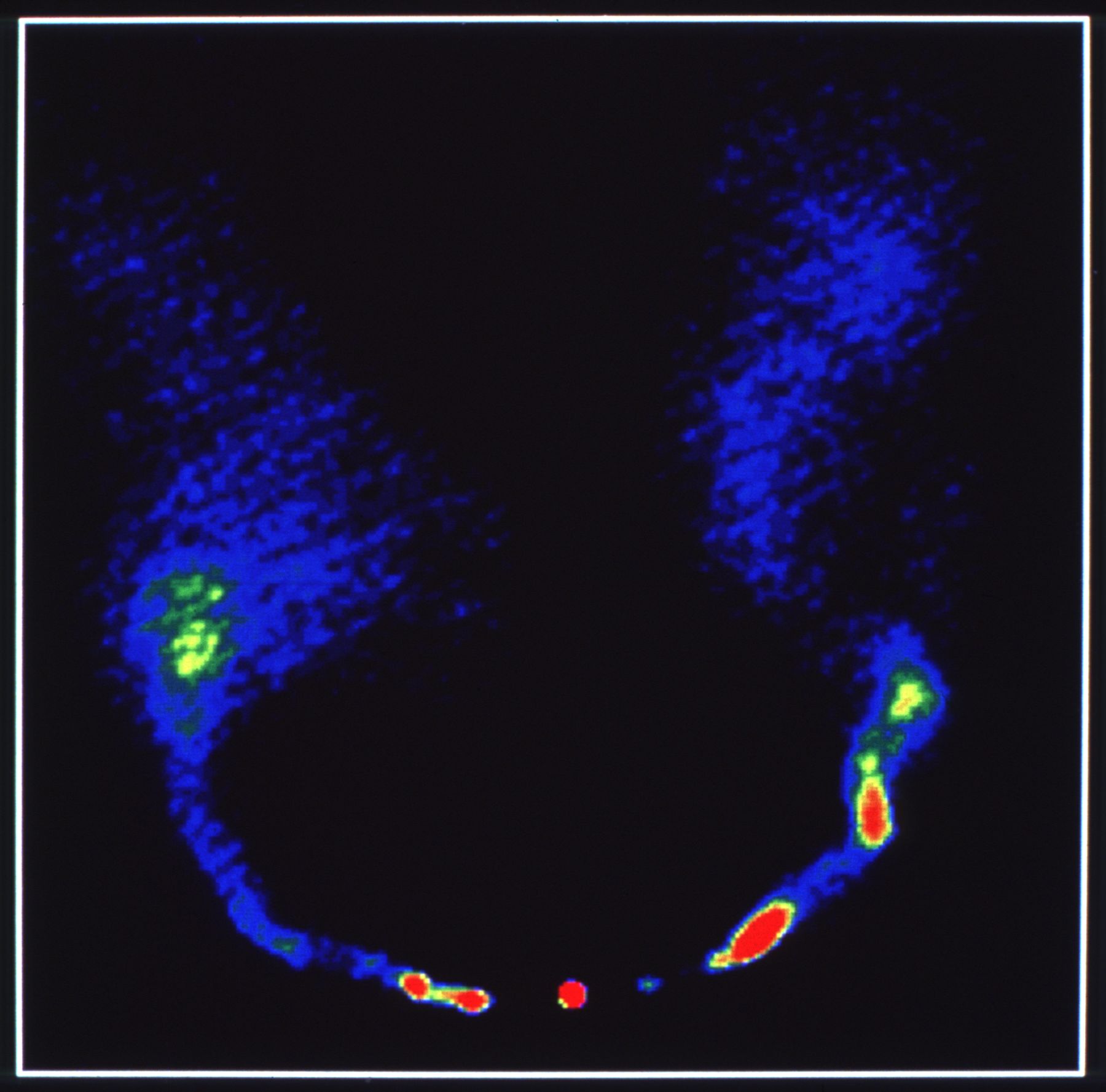

False color image of the radio jets from the radio galaxy NGC 1265. Red shows regions of intense radio emission, while blue shows regions of fainter emission. The center of the radio galaxy is at the location of the red circle at the bottom center of the image. This source is the prototype for the class of Narrow Angle Tail radio sources. The galaxy is moving through the intergalactic medium of the Perseus Cluster at a velocity of about 2000 km/s. It is thought that twin beams of plasma ejected from the galactic nucleus are bent by the ram pressure exerted by the external gas, producing the 'U' shape.
Observing run - 1981 June and October at the VLA in both the B- and D-configurations were combined in order to provide sensitivity to a large range of scale sizes. Number of antennas was 27.
Legacy Astronomical Images
NRAO/AUI/NSF does not hold full copyright for this image. Contact the archivist for details.
Legacy Astronomical Image
C. O'Dea & F. Owen
C. O'Dea, F. Owen
Very Large Array (VLA)
Type of Observation
Center of Image
RA 3:14:57.000, Dec: 41:40:52.000
Field of View
0.033300 x 0.033300 degrees
Contact the archivist for a high resolution tif of this image.
Active Galactic Nuclei Series
Radio Galaxies Unit
