(TRIP+)
Clusters


  figure6835
Gzipped Postscript Version

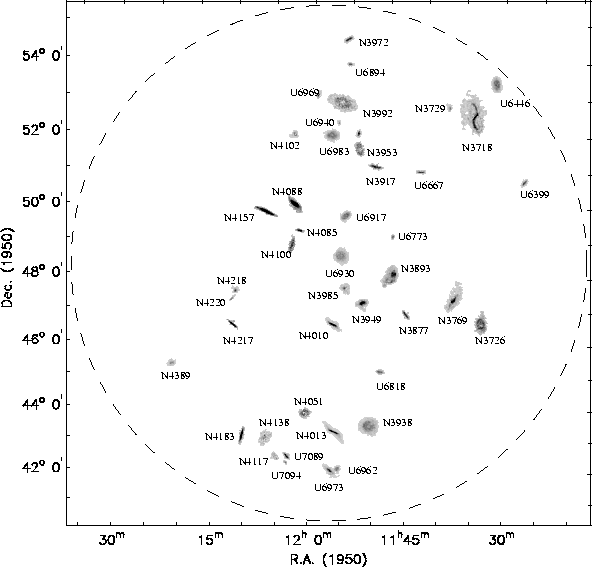

Figure 164: in the Ursa Major Cluster.
HI: WSRT, 30'' resolution.
Notes: The following galaxies appear separately within the Gallery: NGC3718/29 (Fig. 13); NGC3769 (Fig. 42); NGC3893/96 (Fig. 50); NGC3992 & UGC6923/40/69 (Fig. 181); NGC4013 (Fig. 15); NGC4085/88 (Fig. 55); UGC6962/73 (Fig. 80).
Reference: Verheijen, M. A. W., & Sancisi, R. 2001, A&A, 370, 765. See also Verheijen, these proceedings, p. 573.

  figure6855
Gzipped Postscript Version

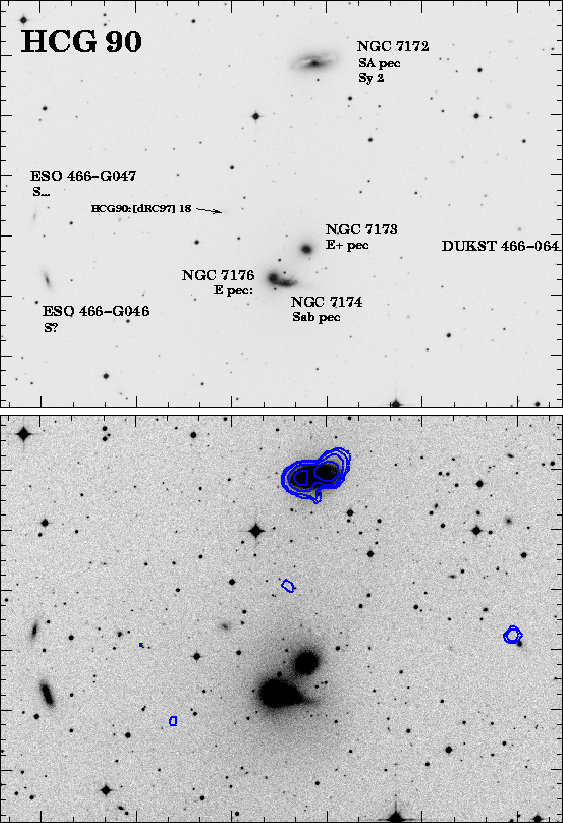

Figure 165: The Compact Group HCG 90.
HI: VLA D-array, tex2html_wrap_inline21640 resolution, contours=tex2html_wrap_inline20248 cmtex2html_wrap_inline20048.
Optical: DSS, FOV=tex2html_wrap_inline21646.
Notes: All galaxies with known redshifts falling within the passband of the observations have been labeled.
Reference: Rupen, Hibbard & Bunker, these proceedings, p. 863.

  figure6879
Gzipped Postscript Version

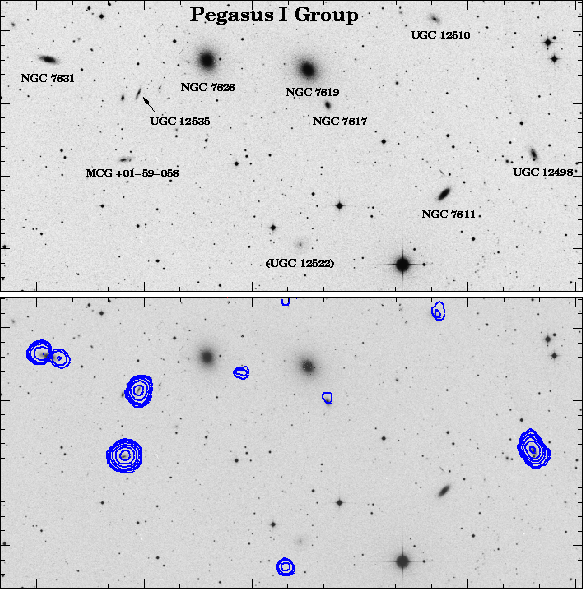

Figure 166: The Pegasus I Group.
HI: VLA D-array, tex2html_wrap_inline21228 resolution, contours=tex2html_wrap_inline20334 cmtex2html_wrap_inline20048.
Optical: DSS, FOV=tex2html_wrap_inline21654.
Notes: The contours represent the combination of two separate observations: a pointing centered on NGC7626 (3423 km stex2html_wrap_inline19828) which found in the galaxy UGC12510 and in cloud lying between NGC7626 and NGC7619; and a separate pointing centered on NGC7617 (4010 km stex2html_wrap_inline19828) which found everything else.
Reference: Observations centered on NGC7626: Hibbard & Sansom, these proceedings, p. 858. Observations centered on NGC7617: Schiminovich et al., these proceedings, p. 863.

  figure6908
Gzipped Postscript Version

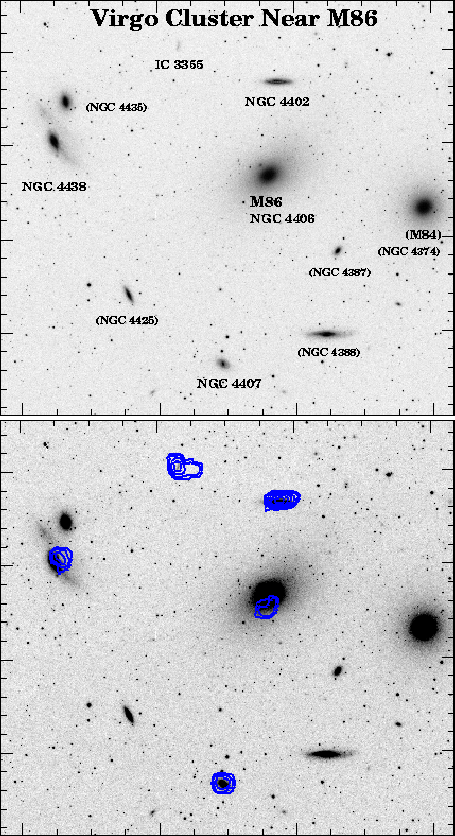

Figure 167: The Virgo Cluster near M86.
HI: VLA D-array, tex2html_wrap_inline20254 resolution, contours=tex2html_wrap_inline20188 cmtex2html_wrap_inline20048.
Optical: DSS, FOV=tex2html_wrap_inline21666.
Notes: Galaxies labeled in parenthesis have velocities that fall outside of the observed range.
Reference: Li & van Gorkom, these proceedings, p. 637.
